Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

Menşe yeri:

ÇİN

Marka adı:

wenyou

Sertifika:

ISO9001, ISO14001, SGS, and UL

Model numarası:

8517

Bize Ulaşın
Bir teklif isteği
Ürün Detayları
Sınıflandırma:
Çift Bileşenli Yapıştırıcılar
Kullanım:
izolatörler, transformatörler ve diğer yalıtım ürünleri
Başvuru:
Orta ve yüksek gerilim uygulamaları için dış mekan elektrik izolatörleri
Epoksi reçinenin görünümü:
Açık sarı şeffaf viskoz sıvı
25°C'de viskozluk:
1000 - 2500mpa.s
25°C'de yoğunluk:
1,16 - 1,20g/cm3
25°C'de Buhar Basıncı:
<0.01pa
Alevlenme noktası:
yaklaşık 135°C
açıklama:
Transformör bobini kapsülü için esnek döküm epoksi reçine - Farklı koşullara uyarlanabilir
Epoksi değeri:
4.5 - 5.0Eq/kg
Ödeme ve Gönderim Koşulları
Min sipariş miktarı
Örnek olarak 20 kg/kova
Fiyat
pazarlık edilebilir
Ambalaj bilgileri

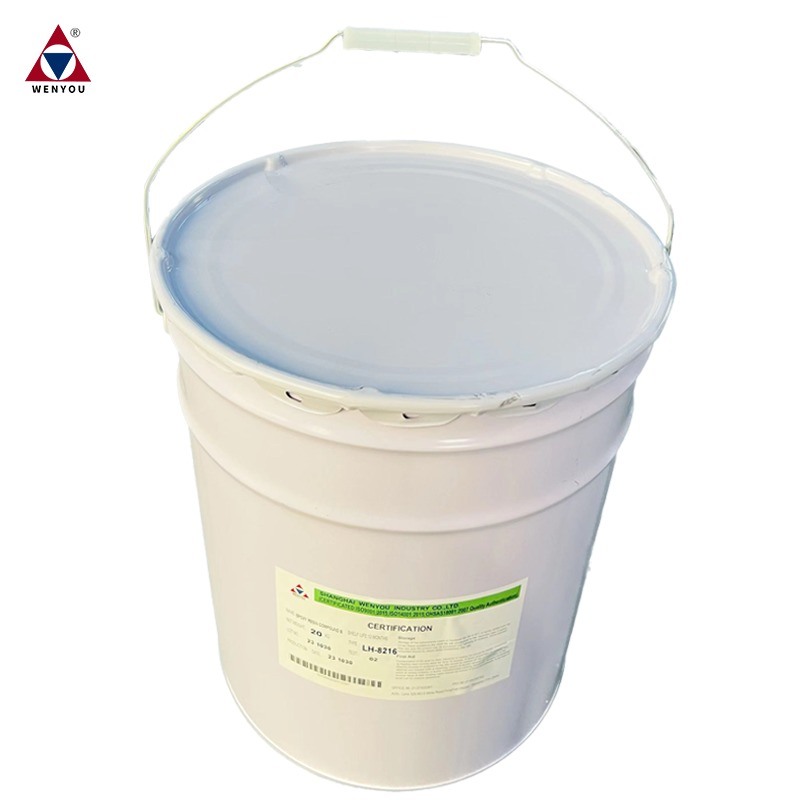

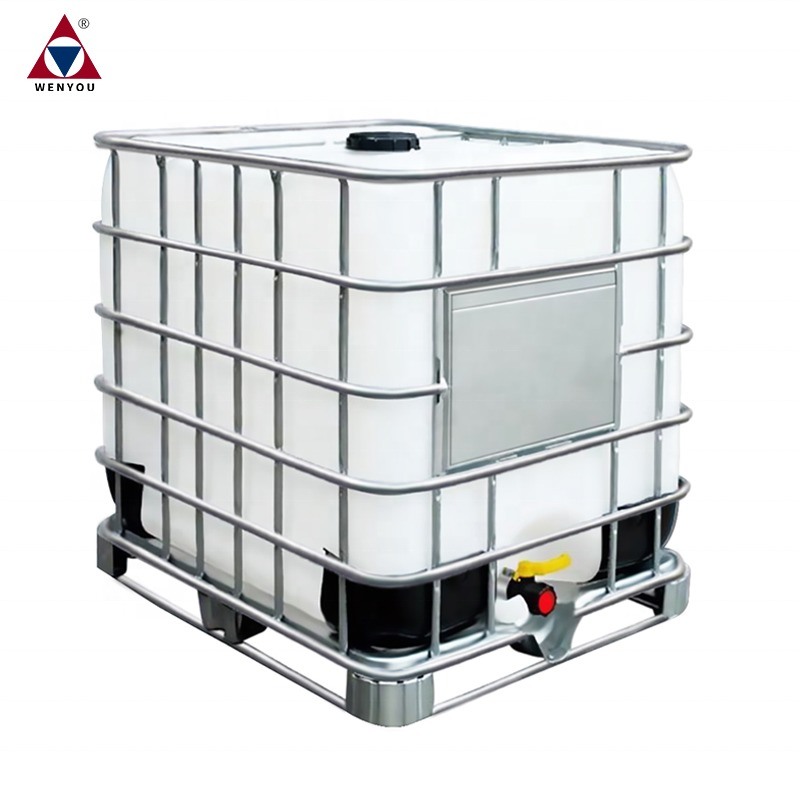

20kg/kova, 220kg/varil, 1200kg/tank
Teslim süresi
7-10 iş günü
Ödeme koşulları
Normalde T/T, L/C
Yetenek temini
Stokta bol miktarda hammadde var
Ürün Açıklaması
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:

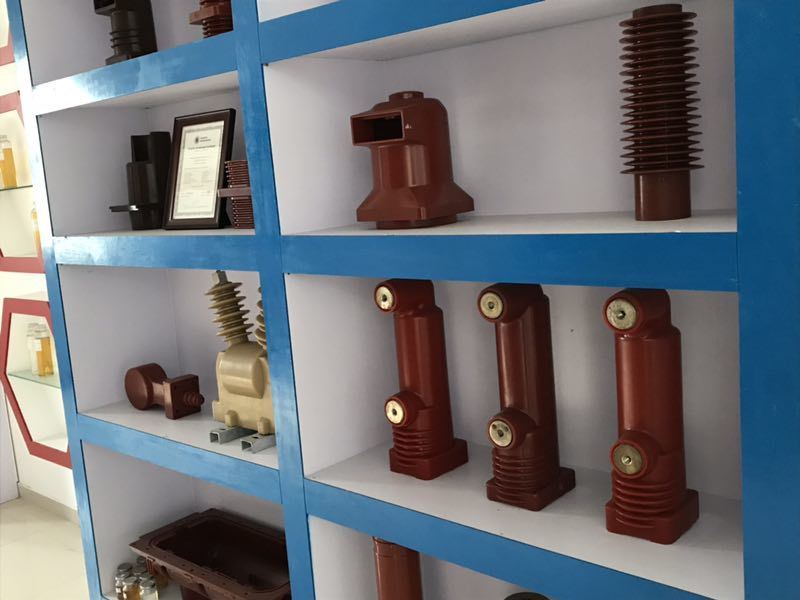

  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
