Name: High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation
Brand: Shanghai Wenyou Industry Co., Ltd.
SKU: 9218F
Price: 2.6 USD
Availability: InStock

Ev > Ürünler > Elektrikli Epoksi Reçine >

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Menşe yeri:

ÇİN

Marka adı:

Wenyou

Sertifika:

UL/SGS/REACH/RoHS

Model numarası:

9218F

Belge:

Wenyou catalogue-2024.pdf

Bize Ulaşın

Bir teklif isteği

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

Ürün Detayları

Uygula:

yüksek gerilim trafosu

Esneklik:

Yüksek

Büzülmeyi iyileştirme:

%0,8-1,0

Başvuru:

Elektrikli yalıtım

Kullanım:

elektrik yalıtımı

Cam geçiş sıcaklığı:

100-120°C

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

240kg

Fiyat

$2.6

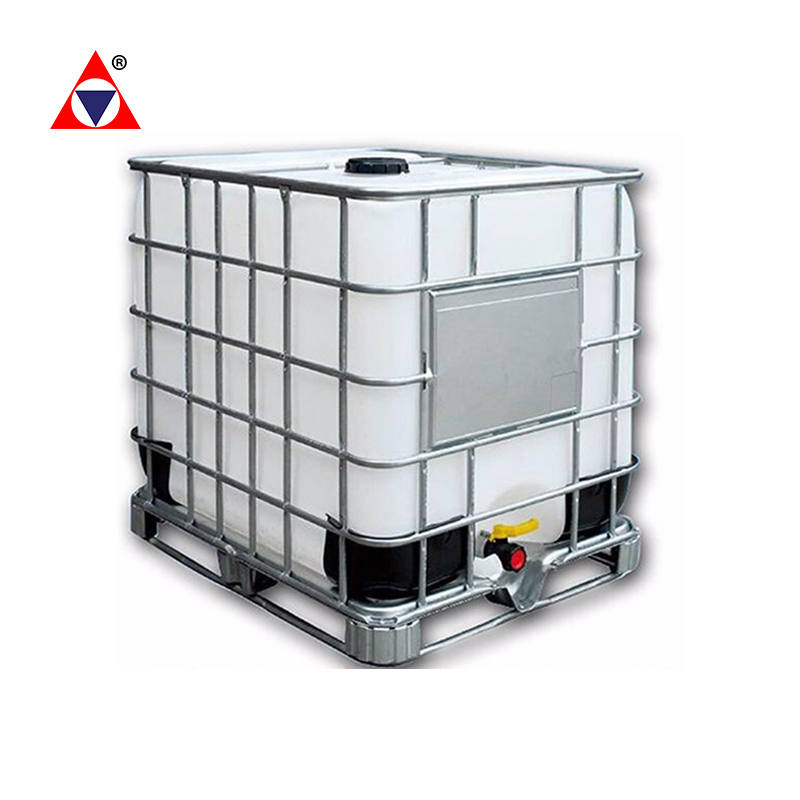

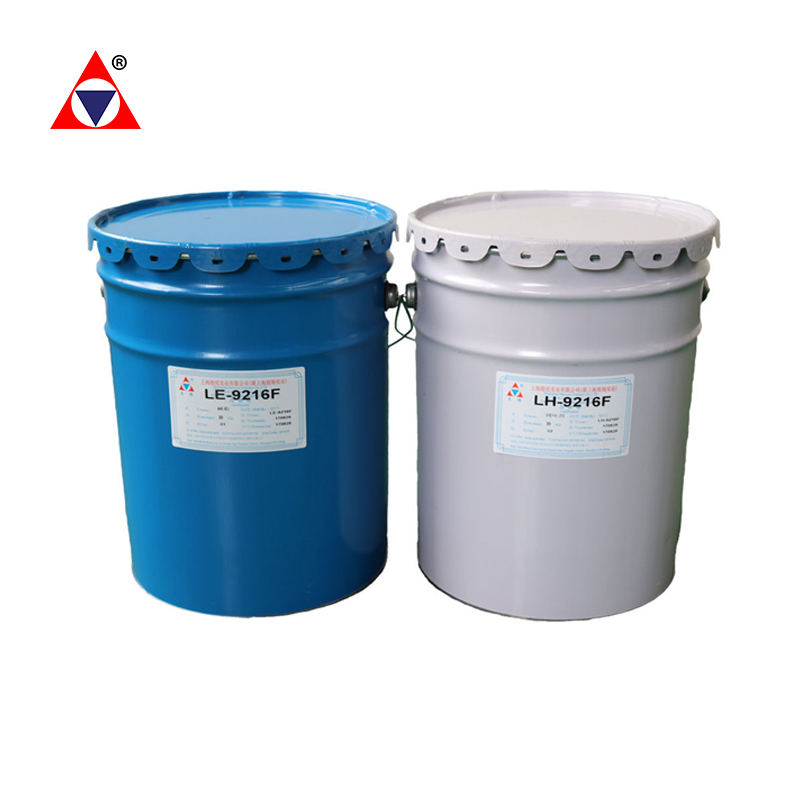

Ambalaj bilgileri

20kg/220kg

Teslim süresi

10 gün içinde

Ödeme koşulları

L/C, T/T

Yetenek temini

200ton/ay

İlişkili Ürünler

High Flexibility Electrical Epoxy Resin with Low Curing Shrinkage and Glass Transition Temperature 100-120°C for Electrical Insulation

En İyi Fiyatı Alın

9218 Elektriksel Epoksi reçine Yüksek darbe dayanıklılığı 10-18kJ/m2 Düşük Kayıp Faktörü

En İyi Fiyatı Alın

Video

Flame Retardant Epoxy Resin Potting Compound with 10-35kV Electrical Insulation and Modified Saturated Epoxy Resin

En İyi Fiyatı Alın

Electrical Insulation Epoxy Resin and Liquid Mold Electrical Insulation Epoxy Resin for Medium&high Voltage Transformer

En İyi Fiyatı Alın

Bize Ulaşın

008618018933365

Elliot.yang@sh-wysy.com

86-21-64308192

Şimdi İletişime Geçin

Ürün Açıklaması

WENYOU 9218 Electrical Epoxy Resin

Premium-grade adhesive solution engineered for critical electrical insulation and bonding applications. This light yellow to colorless liquid combines exceptional mechanical strength with superior dielectric properties, making it ideal for sealing and protecting sensitive electronic components in demanding environments.

Key Features & Advantages

High Impact Resistance: Withstands 10-18kJ/m² (ISO179) for durable component protection
Low Electrical Loss: Minimal dissipation factor of 0.02 ensures energy efficiency
Thermal Stability: Glass transition temperature (Tg) of 100-120°C (ISO11357-2)
Flame Retardant: HB flammability rating (4mm thickness) enhances safety
Precision Curing: Controlled shrinkage (0.6-0.8%) maintains dimensional accuracy

Technical Specifications

Property	Test Standard	Value Range
Compressive Strength	ISO604	150-200 N/mm²
Flexural Strength	ISO178	110-140 N/mm²
Tensile Strength	ISO527	60-85 N/mm²
Epoxy Value	ISO3001	4.4-4.9
Density at 25°C	ISO1675	1.16-1.2 g/cm³
Dielectric Strength	-	20-30 kV/mm
Cure Temperature	-	130-140°C
Viscosity at 25°C	ISO12058	5.5-8.5 MPa*s

Applications

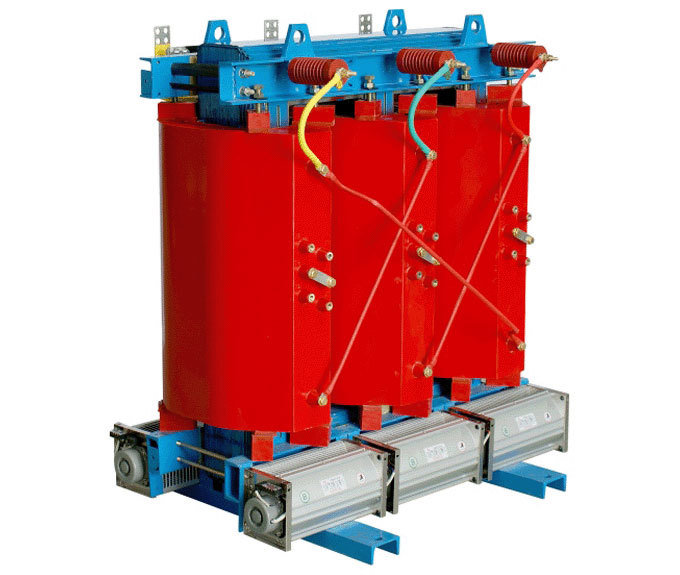

Transformer and bushing insulation
Circuit board encapsulation
High-voltage cable jointing
Switchgear component bonding
Aerospace electrical systems

Frequently Asked Questions

Q: What certifications does this resin hold?

A: REACH/RoHS/UL/SGS certifications with custom compliance options.

Q: What's the minimum order quantity?

A: 240 KG with standard 20KG/220kg packaging.

Q: How soon can orders ship?

A: Guaranteed dispatch within 10 business days.

Q: Is customization available?

A: Yes, technical parameters can be adjusted for specialized applications.

Q: What payment methods are accepted?

A: L/C and T/T transactions.
